Two 80 kW modules in one PMU
One PMU contains two 80 kW power modules with air cooling. Its 160 kW total rated power is shared between two connectors according to the power allocation settings and the vehicles’ charging capabilities.
Modular DC · Public sites and fleets

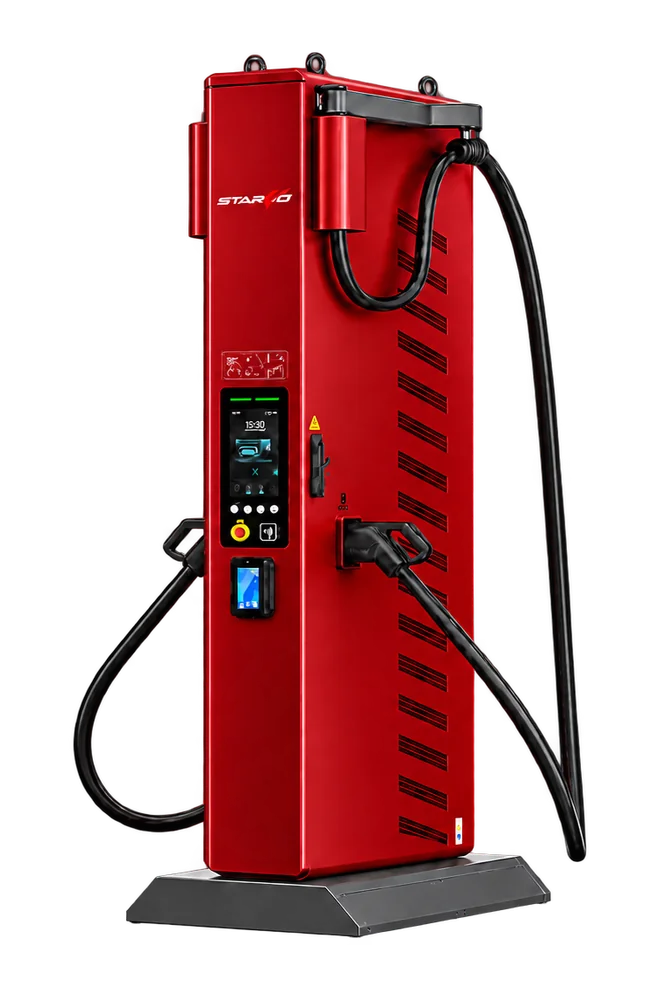

Utopia Slim 160 kW
Starvo Utopia Slim 160 is a modular DC EV charger with 160 kW of total power for public charging sites, commercial properties and fleet depots. It provides two CCS2 charging connectors, each rated at 250 A.
Modular DC charger
New productStarvo Utopia Slim 160 kW
Colour preview: Racing Red
Colours shown are a guide. The final paint finish may vary.
Colour choices apply to the body. The cable hanger bar and mounting base remain dark grey.
Product features
Key features of Utopia Slim 160 kW
10.1-inch display and connectivity
A 10.1-inch colour display shows charging information. The charger supports 4G and Wi-Fi connectivity, ISO 15118-2 and OCPP 1.6J protocols, and remote OTA updates.
Power-Linked: three chargers, six connectors
Three Utopia Slim 160 chargers can be connected in a Power-Linked configuration, with 480 kW of combined rated capacity and six CCS2 connectors. Smart loading allocates power according to charging demand; 480 kW is the combined capacity of all three chargers.
STARVO UTOPIA

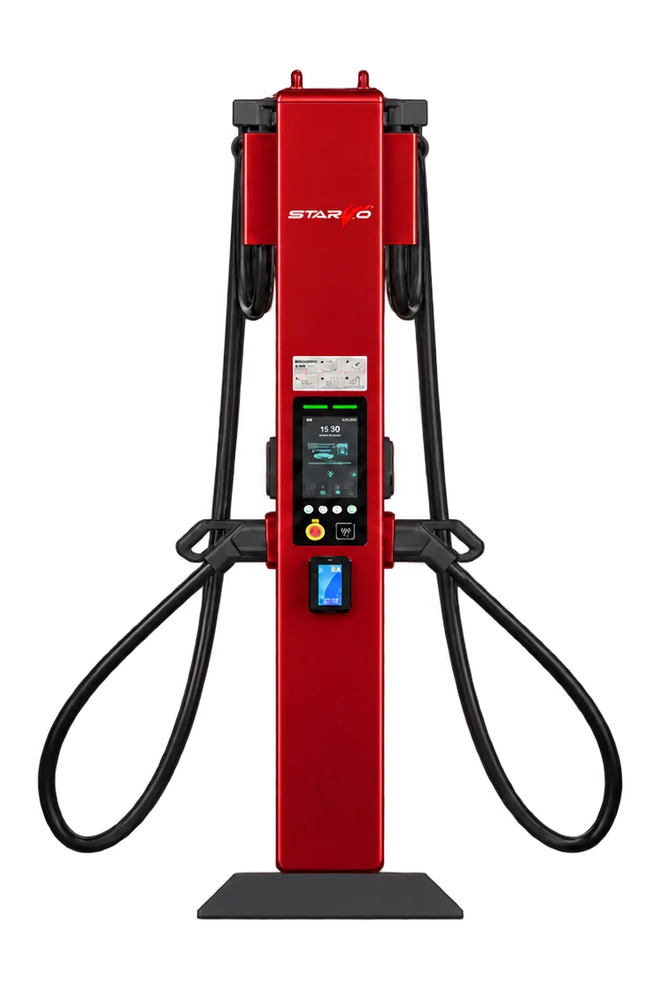

Take a closer look at Utopia
Explore the charger in detail from the available views.
Product views show the red unit. Use the body colour selector to preview other colours.
Modular System
Two 80 kW power modules in one air-cooled PMU provide 160 kW of total rated power per charger.
1 PMU · 2 × 80 kW
ACUAC input
PMU 1
80 kWPower module
80 kWPower module
DCUDC output · 2 × CCS2
Concept diagram. Component positions are illustrative and do not show the exact internal layout of the charger.
The modular design allows individual components to be maintained and replaced in accordance with service procedures.
Power Module Unit (PMU)
A Power Module Unit (PMU) houses the power modules. Their number and capacity depend on the selected model configuration.
Power-Linked
480 kW from 3 × 160 kW
Three Utopia Slim 160 chargers provide 480 kW of combined rated power and six CCS2 connectors. Power is allocated according to charging demand.
Charger 1160 kW · 2 × CCS2Charger 2160 kW · 2 × CCS2Charger 3160 kW · 2 × CCS2Combined rated power480 kW6 × CCS2
The combined capacity is the total rating of three chargers. Power delivered to each vehicle depends on its charging capability, power allocation and installation conditions.
Illustrative Power-Linked configuration. Electrical connections and system settings are defined during project design.
IP65 Power Module
An IP65 protection option is available for the Power Module Unit (PMU), subject to project configuration.
The IP65 rating shown here applies to the PMU. The charger cabinet has its own protection rating, listed in the model specifications.
Starvo will confirm the PMU options suitable for the model and configuration you order.
Planning your installation
Plan charger positions, foundations and the electrical supply with the project’s technical team. Electrical installation and commissioning follow the selected model, Power-Linked configuration and project design.
Dimensions, clearances and electrical connections follow the model’s installation guidance and the project design. Product diagrams explain the system; installation details are established during technical planning.
Discuss installation requirementsTechnical information
Product specifications
Review capacity, connectors and technical requirements before ordering. Starvo can help check that the equipment suits your vehicles and installation conditions.
- Total rated system power
- 160 kW
- Connectors / channels
- 2 × CCS2
- Connector rated current
- 250 A
- Configuration
- 2 × 80 kW modules in one PMU
- Design
- Modular
- Communication protocol
- ISO 15118-2 / OCPP 1.6J
- Connectivity
- 4G / Wi-Fi
Power delivered to the vehicle
160 kW is the total rated power of one charger. Each connector is rated at 250 A. Actual power and current depend on power allocation, vehicle capability and installation conditions. 480 kW is the combined rated capacity of three chargers in a Power-Linked configuration.
Contact us for product information and availability.
Applications
Where this product can be used
Public and commercial charging
For operators and site owners requiring two CCS2 charging points per charger. Choose the number of units according to vehicle types, visitor dwell times and the site’s electrical supply.
Company fleet depots
For vehicles charging when they return to base. Plan the number of chargers and any Power-Linked configuration around energy demand, available charging time and departure schedules.
Before requesting a quotation
What to share with us
Vehicle and site information helps us recommend equipment and assess installation requirements.
01 · Vehicles
Vehicle types and quantities
Share vehicle models, connector types, estimated daily energy demand, parking time and how many vehicles need to charge at once.
02 · Installation
Site and electrical capacity
Share the project address, available electrical capacity, parking photos and planned charger locations, including vehicle access routes.
03 · Procurement
Schedule and service requirements
Tell us the quantity, planned start date and installation needs. Technical support, maintenance, spare parts and warranty are defined in the quotation.
Frequently asked questions
Buying Utopia Slim 160 kW
Can Power-Linked deliver 480 kW to one vehicle?
No. 480 kW is the combined rated capacity of three Utopia Slim 160 chargers, each rated at 160 kW, with six CCS2 connectors in total. Smart loading allocates power according to demand. The power delivered during each charging session depends on vehicle capability, system settings and installation conditions.
How do I request a quotation for Utopia Slim 160 kW?
Tell us about your requirements for this model. Contact us with the required quantity and project location. We will explain configuration choices, availability and delivery lead times.
What affects charging time?
Charging time depends on energy needed, vehicle charging capability, battery condition and charge level, power allocation and electrical installation. Share the vehicle models and operating schedule so Starvo can help assess demand.
What after-sales services are provided?
Technical support, maintenance, spare parts and warranty are provided as set out in the agreed quotation. Scope and terms depend on the product and project location.
Does Starvo serve projects outside Indonesia?
Starvo supplies charging equipment and supports projects in Indonesia, the Philippines and Europe. Projects elsewhere can also be discussed. Equipment, local requirements, shipping, installation and support are assessed for the project location and scope.
Which charging connectors does Utopia use?
The Utopia configurations shown have two CCS2 connectors per charger. A Power-Linked configuration with three chargers of the same model provides six CCS2 connectors.
Does the IP65 option cover the whole charger?
The IP65 option described here protects the Power Module Unit, or PMU. The charger cabinet has a separate protection rating. PMU compatibility is confirmed for the model and configuration you order.
Related products
Compare other models
Compare connector count, total power and power sharing to find the right equipment.

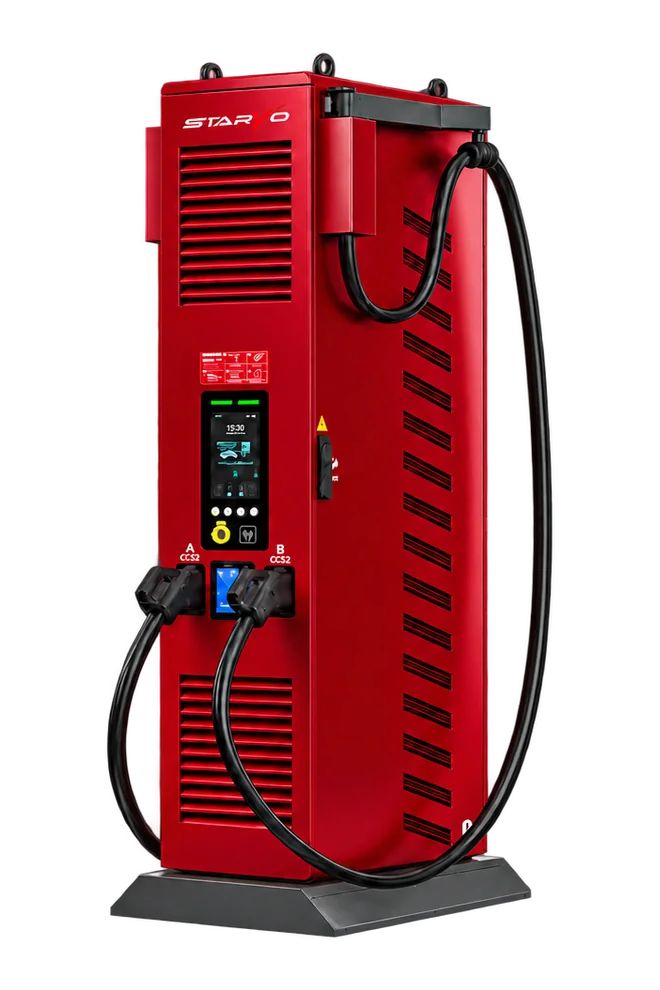

250 kW · 2 × CCS2
